Fan‑out in 1 diagram and 178 words
Explained as simply as possible… but not simpler.

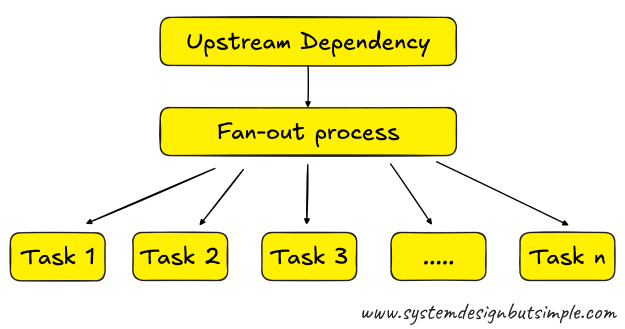

Distributing a request or task to multiple downstream services or components in parallel.
Fan-out patterns improve performance and scalability by breaking a single task into smaller parallel subtasks. This is common in microservices, asynchronous processing, and large-scale data handling.
Use fan-out when a task can be parallelized (e.g., sending notifications, processing user data, querying multiple services) to reduce overall response time or improve throughput.
You need to know
Synchronous vs. Asynchronous Fan-out: Synchronous fan-out waits for all results (e.g., querying multiple services), while asynchronous uses queues or events to trigger parallel tasks without waiting (e.g., sending emails).
Failure handling is crucial: If one of the fanned-out tasks fails, decide whether to retry, fail the entire operation, or continue with partial results.
Can overwhelm downstream services: Too much parallelism without throttling can cause overload; use rate limiting, retries with backoff, or bulkheads.
Popular technologies
Amazon SNS (Simple Notification Service) - Used for asynchronous fan-out via pub/sub.
Apache Kafka - High-throughput event streaming platform for distributing tasks to consumers.
