How to choose between SQL and NoSQL

Explained as simply as possible… but not simpler.

SQL and NoSQL solve the same problem (storing data) with fundamentally different approaches:

• SQL: Structured data in tables with predefined schemas. Relationships between tables via JOINs.

• NoSQL: Flexible data storage (documents, key-value, graph, wide-column). No fixed schema required.

SQL Databases

Key characteristic: Structured, relational, ACID-compliant

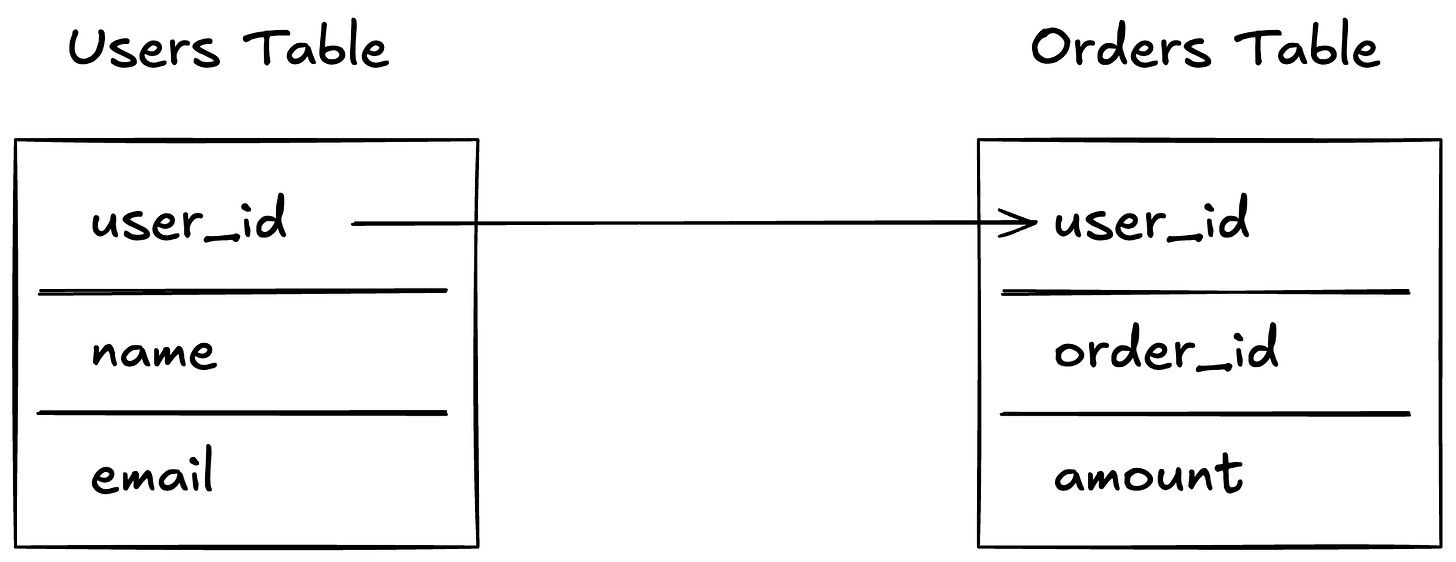

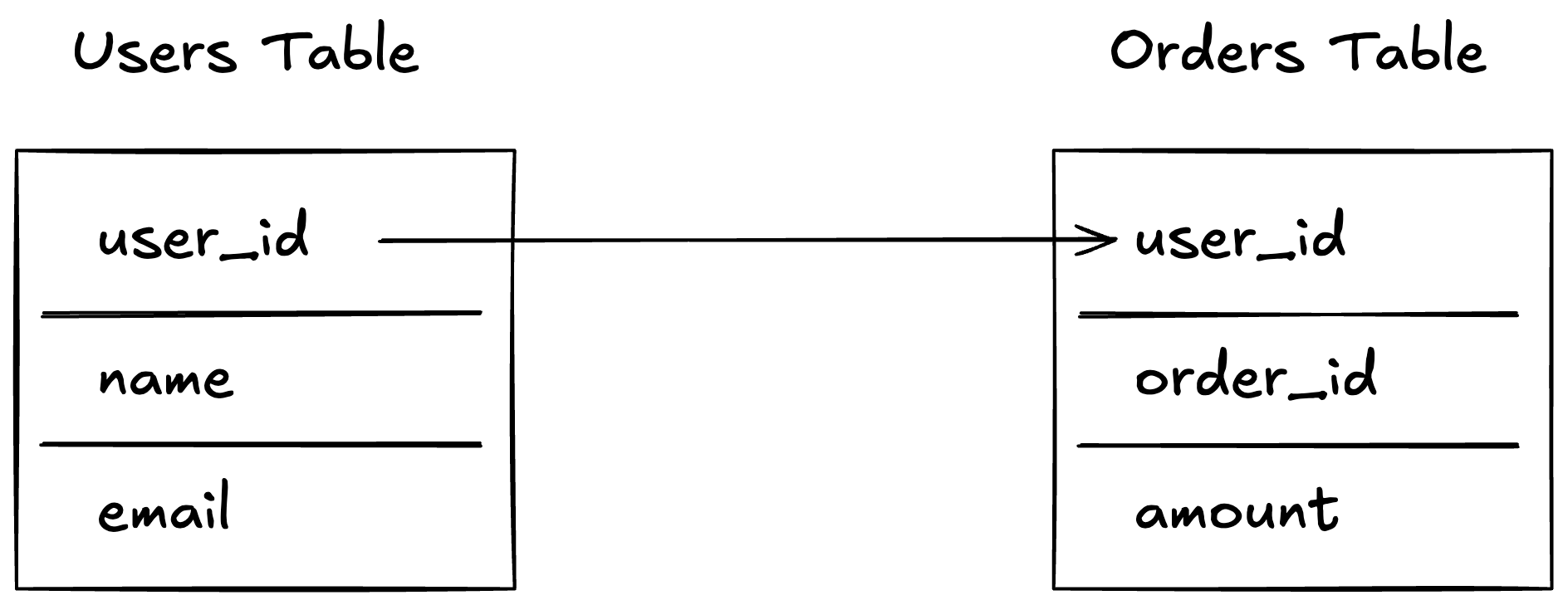

Structure:

Examples: PostgreSQL, MySQL, Oracle

Properties:

• ACID Transactions - All-or-nothing operations (critical for payments, banking)

• Complex Queries - JOINs across multiple tables, aggregations, filtering

• Data Integrity - Schema enforces structure, reduces errors

• Mature Tooling - Decades of optimisation, monitoring, backup tools

• Scaling

  • Vertical: Adding CPU/RAM to one server is expensive

  • Horizontal: Difficult to shard writes across multiple servers

• Rigid Schema - Changes require migrations, can lock tables

NoSQL Databases

Key characteristic: Flexible, distributed, eventually consistent

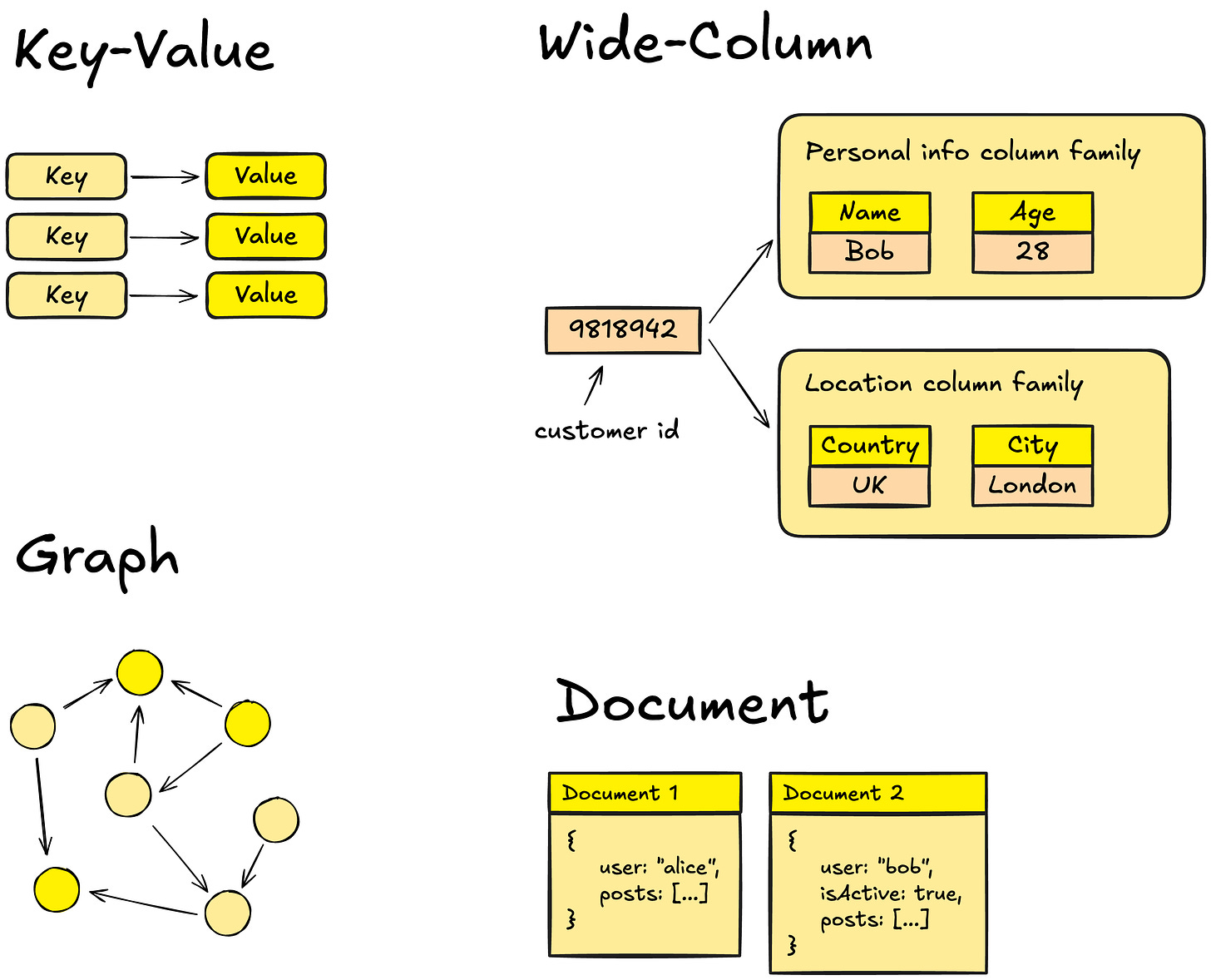

Types:

Properties:

• Horizontal Scaling - Add more servers to handle load

• Flexible Schema - Store different structures without migrations

• High Performance - Optimised for specific access patterns

• Distributed by Design - Natural fit for global, multi-region systems

• Eventual Consistency - Writes take time to propagate across nodes

• Limited Querying - Complex queries handled in application code

• Less Data Integrity - Schema validation happens in your application

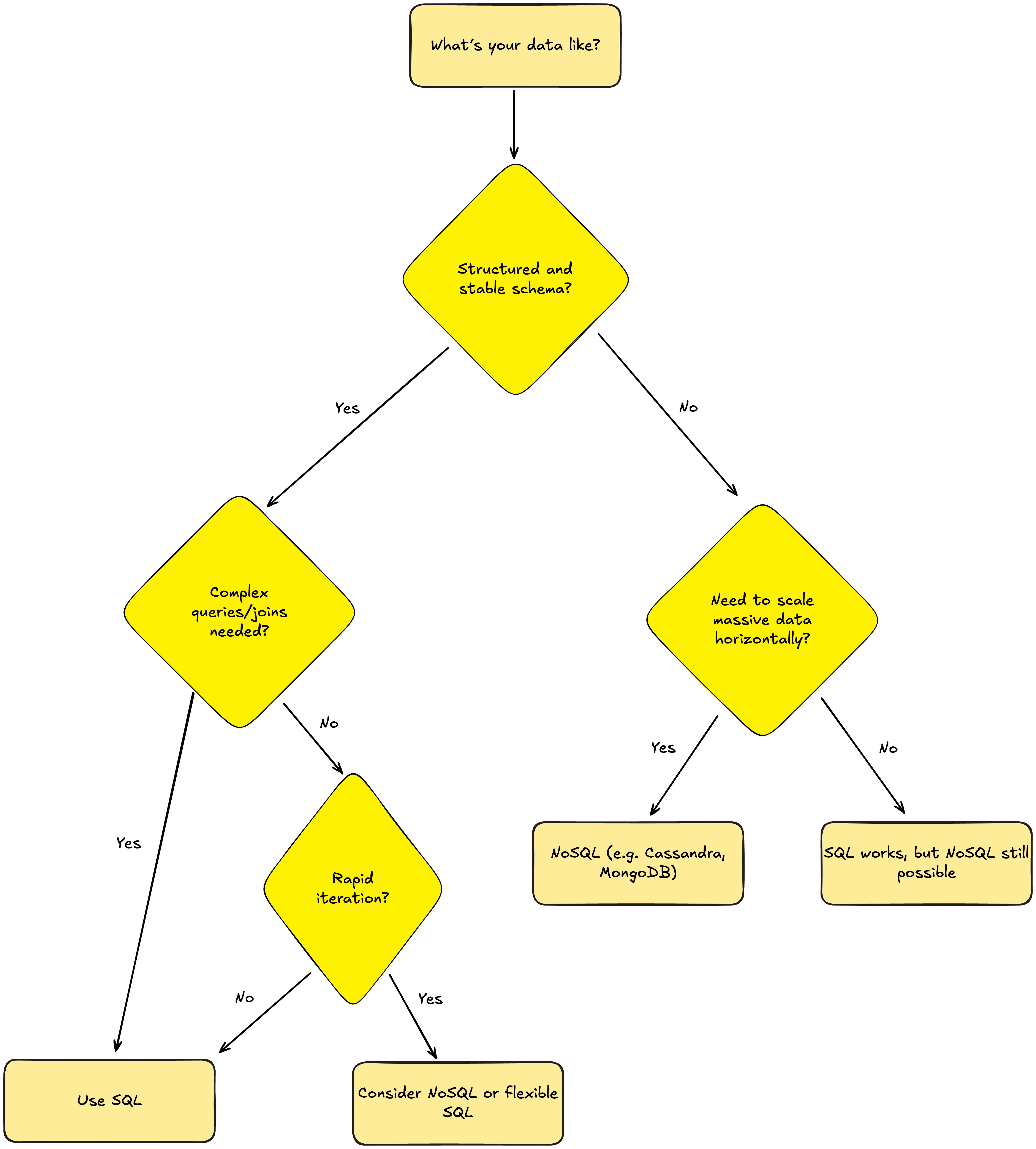

A decision framework for interviews

Consistency Trade-off

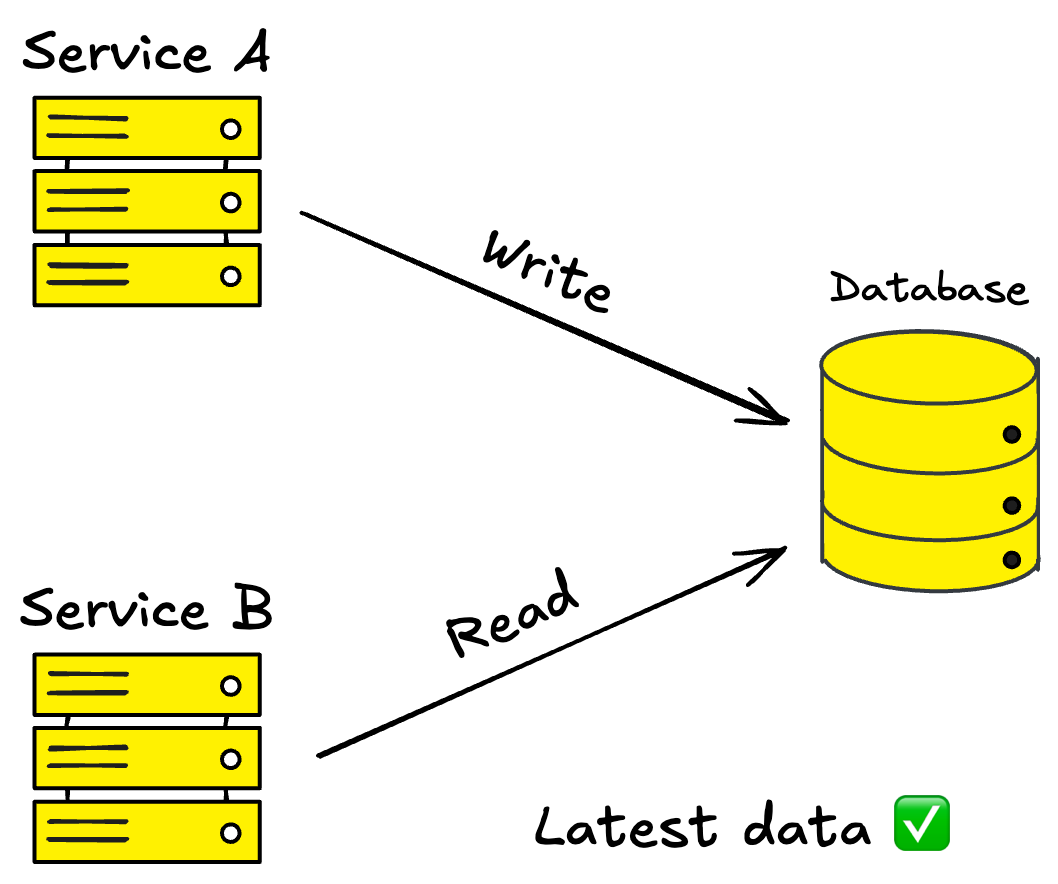

Strong Consistency (SQL):

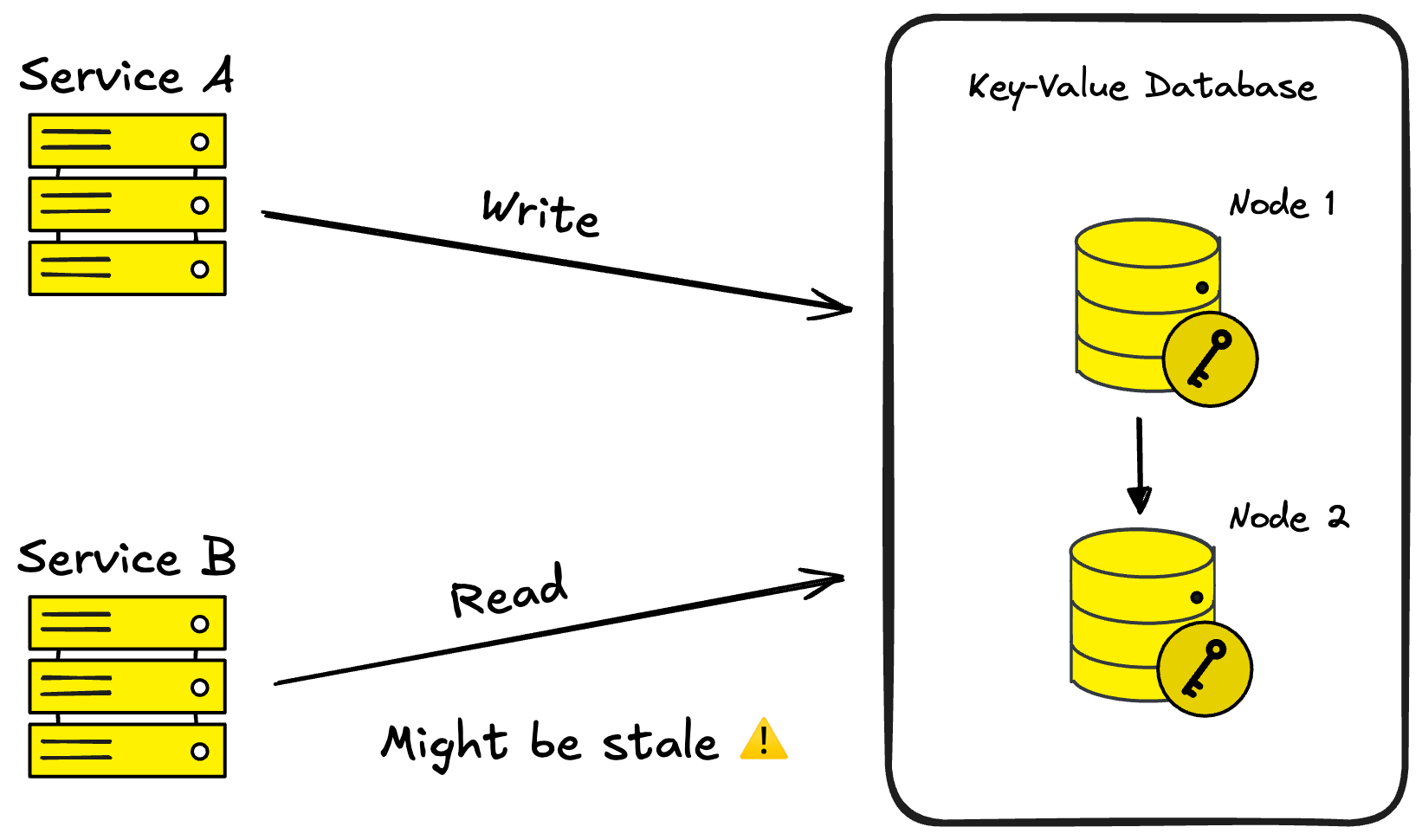

Eventual Consistency (NoSQL):

Scaling Patterns

SQL Scaling:

• Vertical: Add CPU/RAM to main server (Read replicas for read-heavy loads)

• Horizontal: Sharding (complex) - Split data across servers by key

NoSQL Scaling:

• Horizontal: Add nodes to cluster (Automatic data distribution)

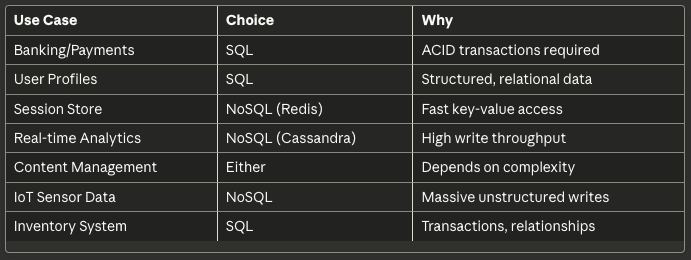

Common Use Cases

---
